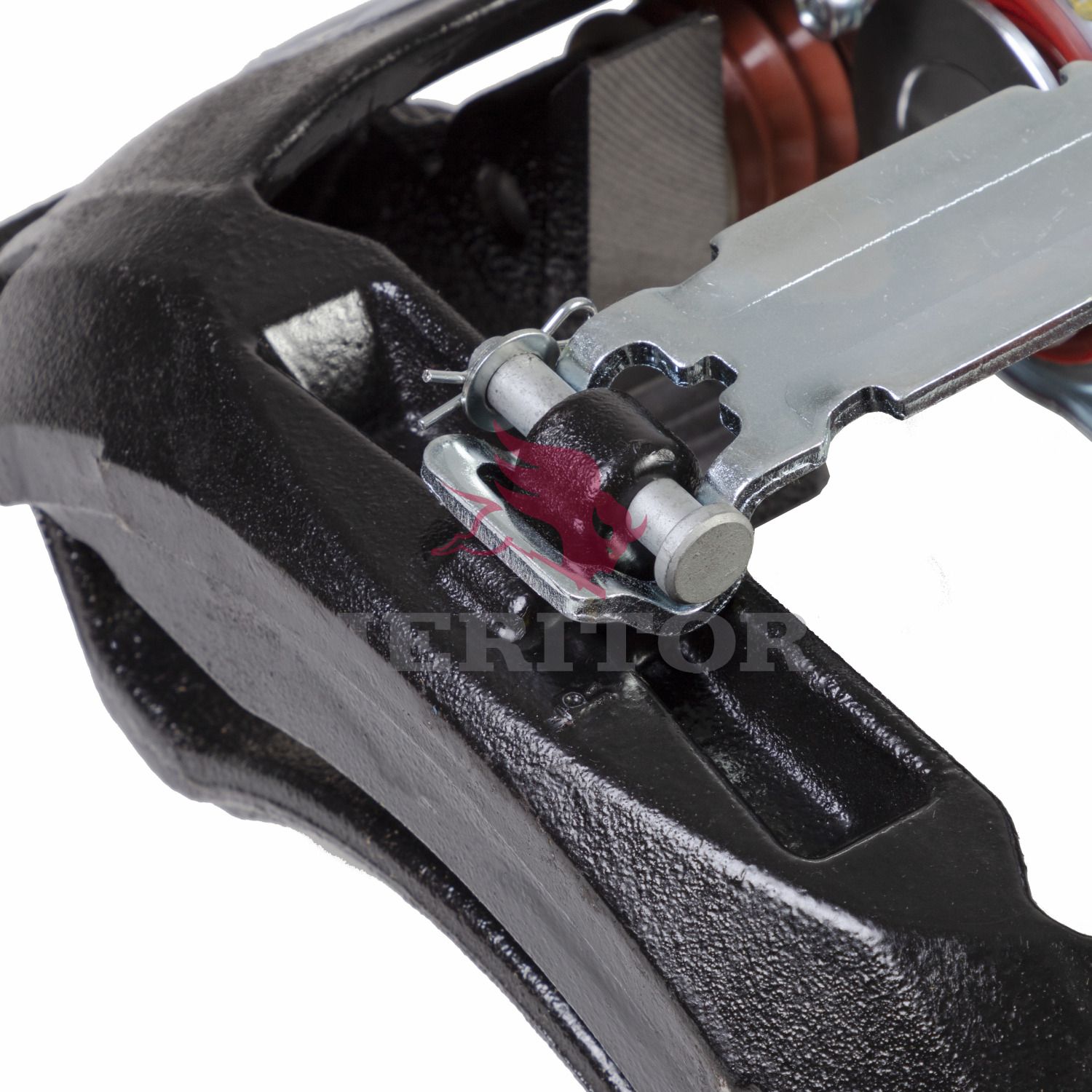

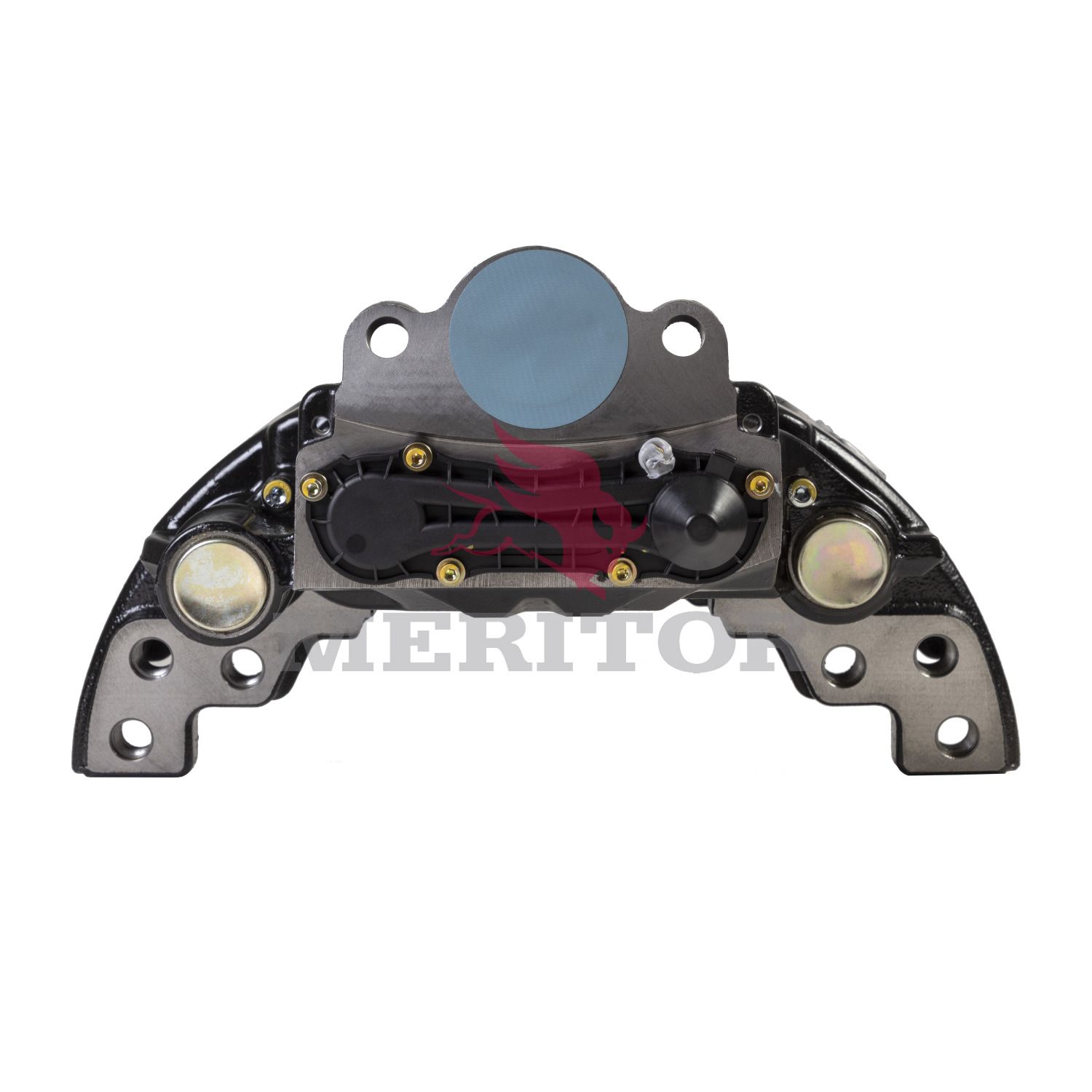

Air Disc BrakeCalipers.
Product Specifications |
|
| Application | Paccar-Navistar |
|---|---|
| Axial or Radial Mount | Axial |
| Brake Chamber Angle | 12 degrees |
| Brand | Meritor Reman |
| Carrier Mounting Holes | 6 |
| Chamber Mount | Axial 12 degrees |
| Chamber Position | Axial |
| Complete Upgrade Kit | <a style=color:blue;text-decoration:underline; href=https://www.meritorpartsxpress.com/webapp/wcs/stores/servlet/en/meritor-na/kit225295target=_blank >KIT225295</a> |
| Distance A-B | 2 9/16 in. |
| FMSI | 1369 |
| Left or Right | Right |
| Model | ADB22X |
| Mounting Hole Size | M20 X 1.5 |
| New or Reman | Remanufactured |
| Numbers Of Pistons | 2 |
| OEM | Bendix |
| Pad Length | 8.28 in. |
| Pads Included | No |
| Pallet Quantity | 12 |
| Related Core Group | BC604 |
| Related Core Number | XM3054 |
| Related Disc Pad Number | MMD1369AG; MMD1369DD; ED1369S |
| Weight | 70.50 |
|
|
|
Extended Information |
|
| No data found | |
